A hydraulic ferrule pre-loading machine is an essential piece of equipment in the modern hydraulic pipeline assembly process. It ensures precise and stable pre-assembly of ferrules, improving sealing reliability and reducing human error. Whether you are setting up a new hydraulic system or upgrading your existing production line, understanding how to use, operate, and choose the right ferrule pre-loading machine will help enhance your assembly efficiency and product quality.

1. How to Use a Hydraulic Ferrule Pre-loading Machine

The proper use of a hydraulic ferrule pre-loading machine directly affects the performance of the pipeline connection and the long-term reliability of the hydraulic system. This machine applies a controlled hydraulic force to pre-assemble ferrules and fittings before final installation. Below are the key steps for effective use.

1.1 Preparation Before Operation

Before starting, ensure that all ferrules, nuts, and fittings are clean and free from oil, dust, or metal shavings. The hydraulic unit should be filled with clean hydraulic oil and checked for leaks. Inspect the machine for signs of wear, especially the pressure seals and the hydraulic cylinder connections. Always confirm that the machine is securely positioned on a stable surface.

1.2 Setting Up the Machine

Attach the appropriate size of clamping die or fixture that matches the tube and ferrule dimensions. Connect the hydraulic power source to the pre-loading head. If your system includes a pressure gauge or a digital force indicator, calibrate it according to the ferrule size and manufacturer’s specifications. This ensures accurate preload control.

1.3 Step-by-Step Operation

1. Insert the tube into the fitting until it reaches the end stop.   2. Position the ferrule and nut correctly.   3. Place the assembly into the pre-loading machine fixture.   4. Activate the hydraulic pump to apply preload force.   5. Observe the pressure indicator; once it reaches the preset preload value, stop the pressure application.   6. Release the hydraulic pressure gradually.   7. Remove the pre-assembled component and inspect the ferrule seating visually.

1.4 Safety Tips

Always wear safety gloves and goggles. Do not exceed the recommended preload force, as over-compression can deform ferrules or damage fittings. Make sure the hydraulic hose and coupling are properly connected before applying pressure. Disconnect power when performing maintenance or cleaning.

2. How to Operate a Ferrule Pre-loading Machine Correctly

Operating a ferrule pre-loading machine requires attention to precision, consistency, and safety. Unlike manual pre-assembly, hydraulic machines provide uniform loading pressure, which ensures that every ferrule is compressed under identical conditions. Below are some essential practices for consistent operation.

2.1 Understanding the Machine Structure

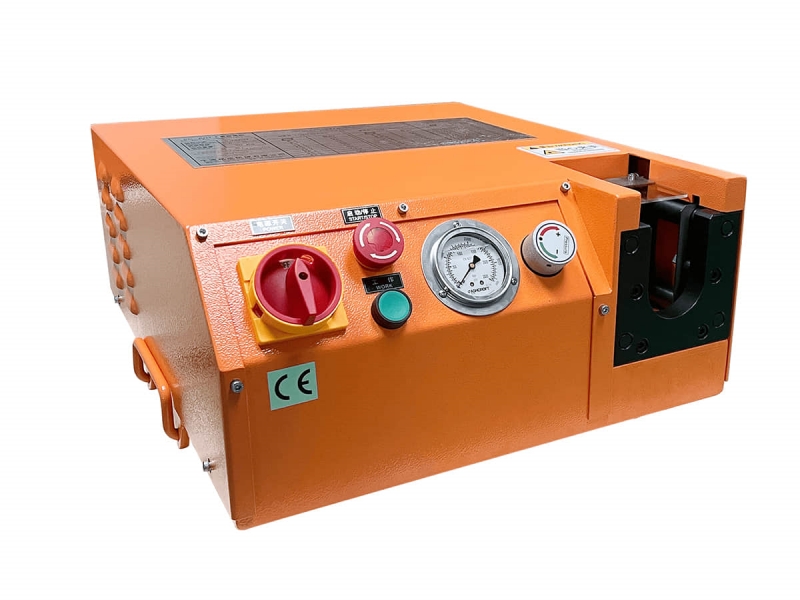

A ferrule pre-loading machine usually consists of a hydraulic power unit, a control valve, a loading head, and a pressure gauge. Some advanced versions include a digital control interface for pressure and stroke control. Understanding each component helps operators troubleshoot effectively and prevent misuse.

2.2 Operating Procedure

To operate efficiently:

• Confirm that the hydraulic pressure is set within the recommended range for the specific ferrule type.

• Use the correct die set and ensure proper alignment between the tube and fitting.

• Monitor the preload force during compression and maintain consistent pressure hold time to achieve uniform seating.

• After each operation, clean the tooling surfaces to prevent contamination.

2.3 Common Mistakes to Avoid

- Applying excessive pressure that crushes the ferrule seat.   - Using mismatched tube or nut dimensions.   - Ignoring calibration requirements for the hydraulic system.   - Skipping inspection after pre-loading, which can cause leakage in the final assembly.

3. How to Set the Correct Pre-load on a Ferrule

The pre-load level determines how well the ferrule grips the tube and seals under pressure. Incorrect preload can result in leaks, loose connections, or deformation. Setting the correct pre-load requires understanding material properties, hydraulic pressure settings, and assembly standards.

3.1 Determining the Correct Pre-load Value

Refer to the manufacturer’s technical data sheet for the recommended preload pressure or torque for each ferrule size. Hydraulic systems often require a pressure between 20 MPa and 60 MPa, depending on the ferrule material (carbon steel, stainless steel, or copper).

3.2 Adjusting the Hydraulic Pressure

Use the machine’s control valve or pressure regulator to set the desired preload value. Modern machines are often equipped with digital readouts that display real-time pressure values. For older models, rely on the gauge reading and verify with a calibrated reference instrument.

3.3 Checking Preload Quality

After pre-loading, check whether the ferrule’s cutting edge has uniformly penetrated the tube surface without causing distortion. Conduct a visual inspection and, if possible, a pressure-tightness test to verify the integrity of the pre-assembled joint.

3.4 Troubleshooting Improper Pre-loads

If the ferrule slips or leaks during testing, it may be due to:

• Under-loading (insufficient pressure applied)

• Contaminated tube surface

• Improper alignment during assembly

• Damaged or worn ferrules

Always re-inspect the setup and recalibrate the machine if such issues persist.

4. How to Choose the Right Ferrule Pre-loading Machine

Selecting the right ferrule pre-loading machine involves evaluating your production needs, material compatibility, and precision requirements. With many manufacturers offering different models—hydraulic, electric, or manual—it’s crucial to select equipment that meets both operational and quality standards.

4.1 Consider the Type of Application

If your operation involves high-volume production or large-diameter tubes, a hydraulic ferrule pre-loading machine provides the best efficiency and consistency. For smaller batches or field maintenance, a manual or electric model may be sufficient. Consider the pressure range and speed requirements of your workflow.

4.2 Evaluate Machine Specifications

When choosing a pre-loading machine, pay attention to:

• Maximum operating pressure

• Compatibility with tube and ferrule sizes

• Precision of pressure control

• Ease of die replacement and maintenance

• Availability of spare parts and after-sales service

4.3 Choose Reliable Manufacturers

Partnering with a professional manufacturer ensures that your machine meets international quality standards and provides long-term reliability. Look for a company that offers both product customization and technical support.

4.4 The Difference Between Hydraulic, Electric, and Manual Models

Hydraulic machines provide the highest force and repeatability, making them ideal for industrial use. Electric models offer convenience and quieter operation, suitable for laboratory or small workshop environments. Manual models are compact and portable but require more operator skill and strength.

5. Benefits of Using a Hydraulic Ferrule Pre-loading Machine

Modern hydraulic ferrule pre-loading machines provide several advantages:

• Consistent Preload: Uniform compression force ensures identical assembly results.

• Improved Efficiency: Speeds up the assembly process by reducing manual work.

• Enhanced Seal Reliability: Proper preload eliminates micro-leaks and enhances long-term durability.

• Reduced Human Error: Controlled pressure application minimizes operator dependency.

• Longer Component Life: Balanced preload prevents over-stressing of ferrules and tubes.

6. Maintenance and Calibration Tips

Regular maintenance ensures that your ferrule pre-loading machine continues to perform accurately and safely. Follow these practices:

• Calibrate the pressure gauge and sensors periodically.

• Replace seals and hydraulic oil as per manufacturer’s schedule.

• Keep the work area clean and remove debris after each cycle.

• Store ferrules and fittings in a dry, dust-free environment.

• Train operators to recognize early signs of wear or leakage.

7. Why Pre-loading Matters in Hydraulic Systems

Ferrule pre-loading is not merely a preparatory step; it’s the foundation of leak-proof hydraulic connections. By applying precise preload, the ferrule creates a reliable metal-to-metal seal that withstands high pressure, vibration, and temperature fluctuations. Skipping this process or performing it manually without control often leads to leaks and premature system failures.

8. Conclusion: Choose Ningbo Kumsung Machinery for Reliable Ferrule Pre-loading Solutions

When it comes to hydraulic ferrule pre-loading machines, choosing a trusted manufacturer ensures performance, consistency, and long-term reliability. Ningbo Kumsung Machinery Co., Ltd. is a leading producer of ferrule pre-assembly machines and hydraulic connection components such as EO-2 nuts, connectors, and ferrules. Our products are widely used across industries including road transportation, aerospace, marine engineering, rail transit, and industrial machinery.

By continuously upgrading product design and technology, our pre-assembly equipment has significantly improved the stability and efficiency of ferrule pre-loading while ensuring consistent quality. We believe that quality is the life of an enterprise, and our commitment to excellence has earned the trust of domestic and international customers.

If you are seeking a dependable solution for your hydraulic pipeline connections, Ningbo Kumsung Machinery provides advanced equipment, expert guidance, and professional support to help you achieve stable, leak-free, and efficient assembly results.

Contact us today to learn more about our hydraulic ferrule pre-loading machines and discover how our solutions can enhance your production performance.
