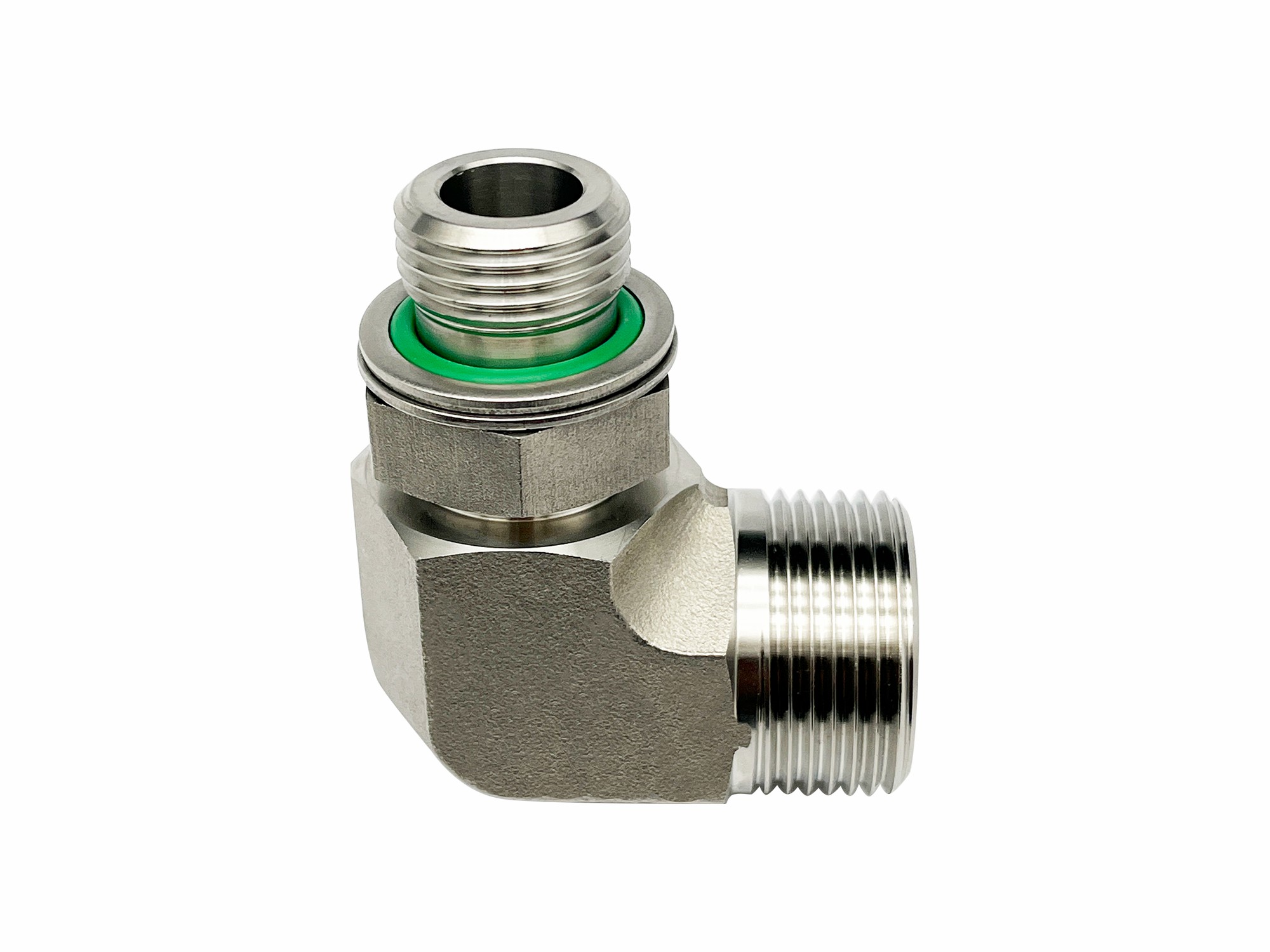

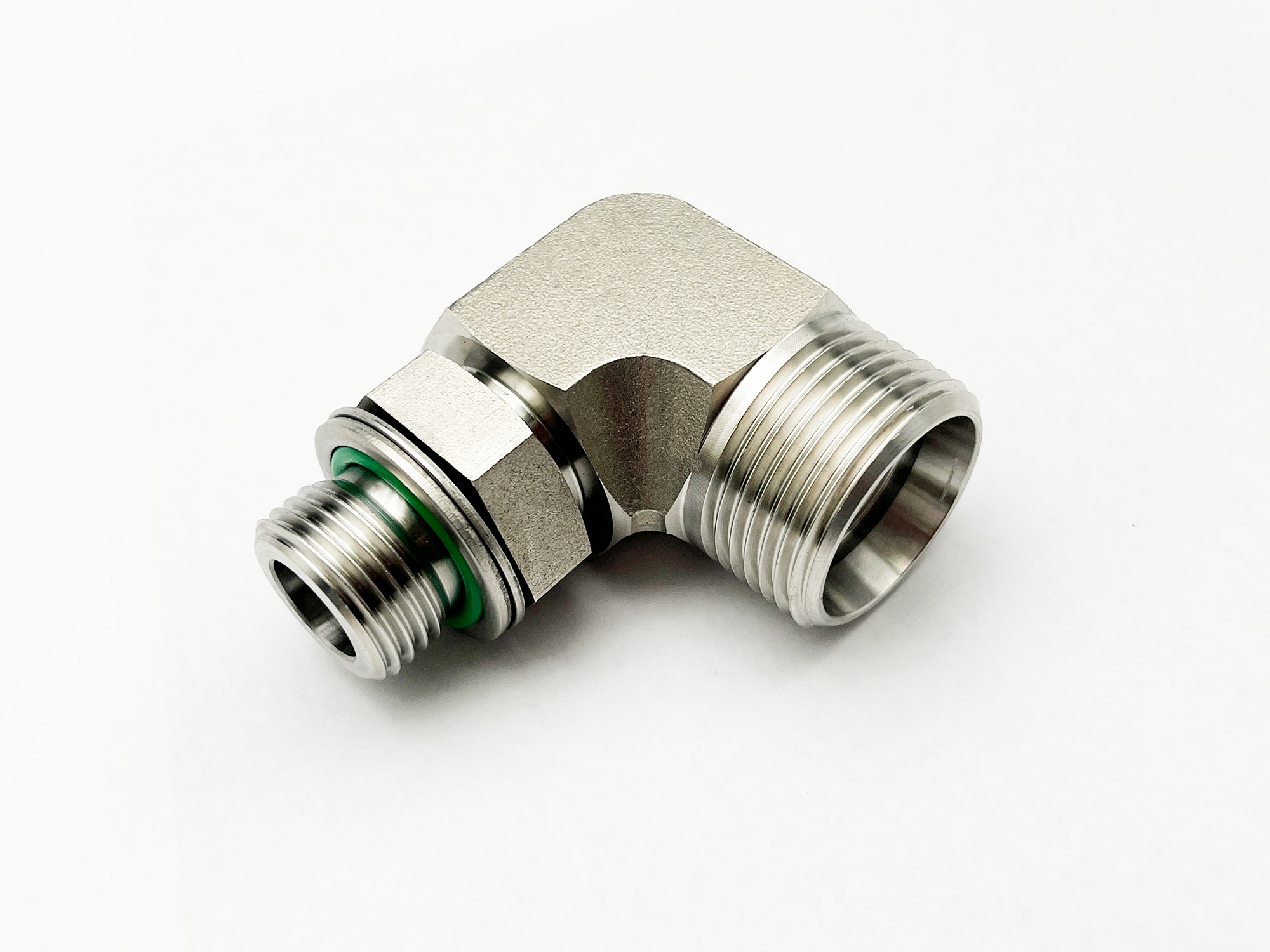

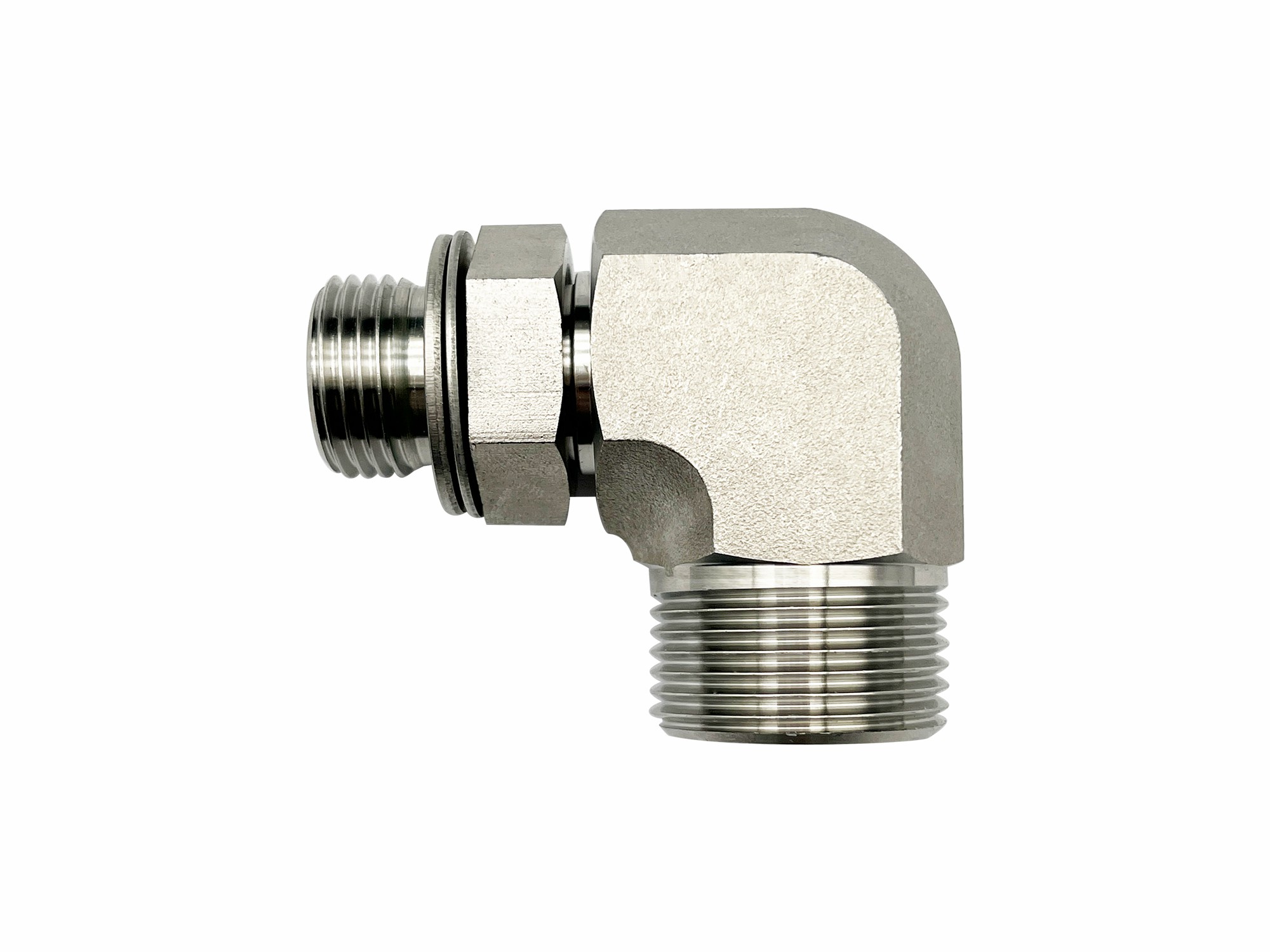

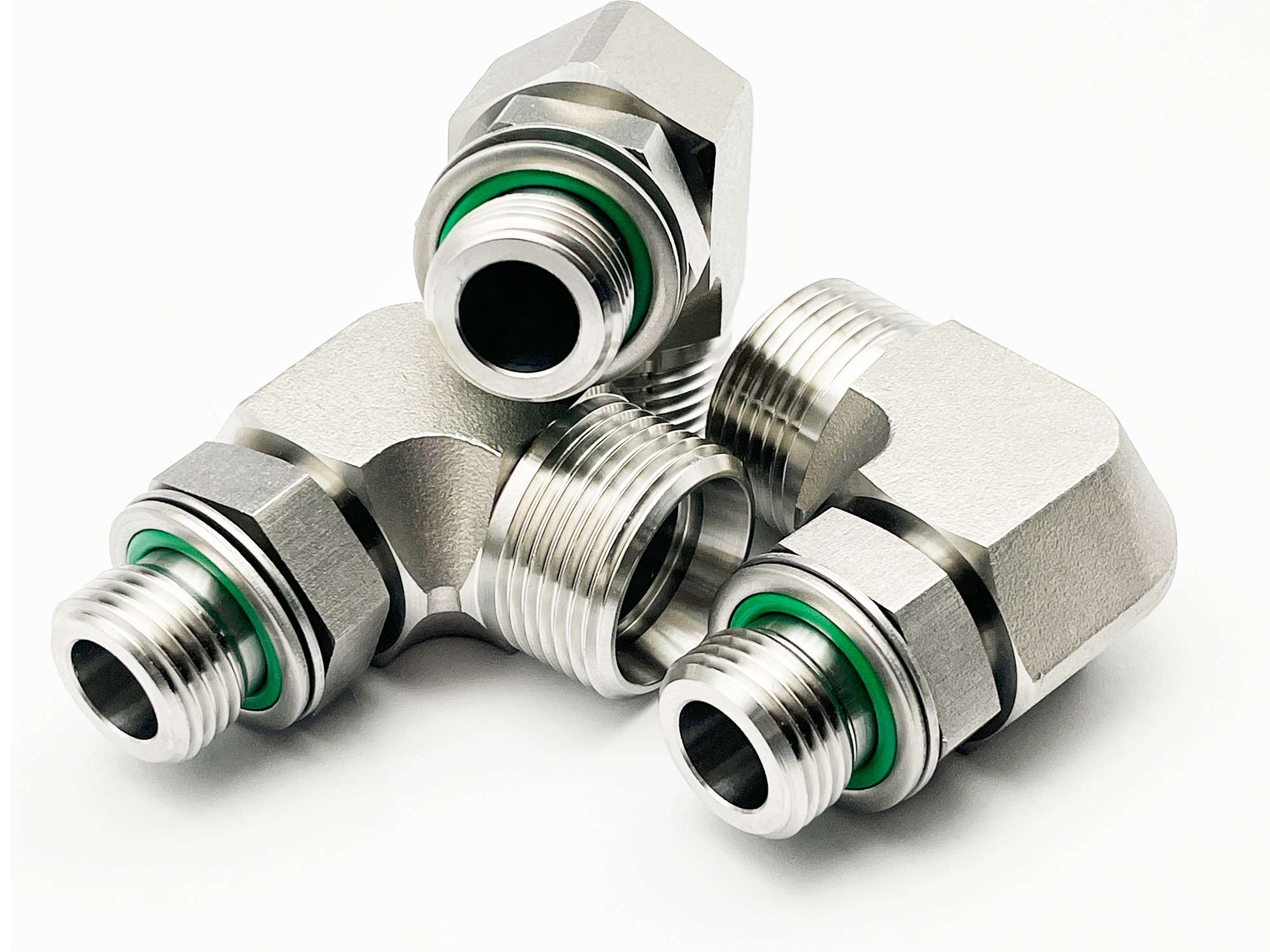

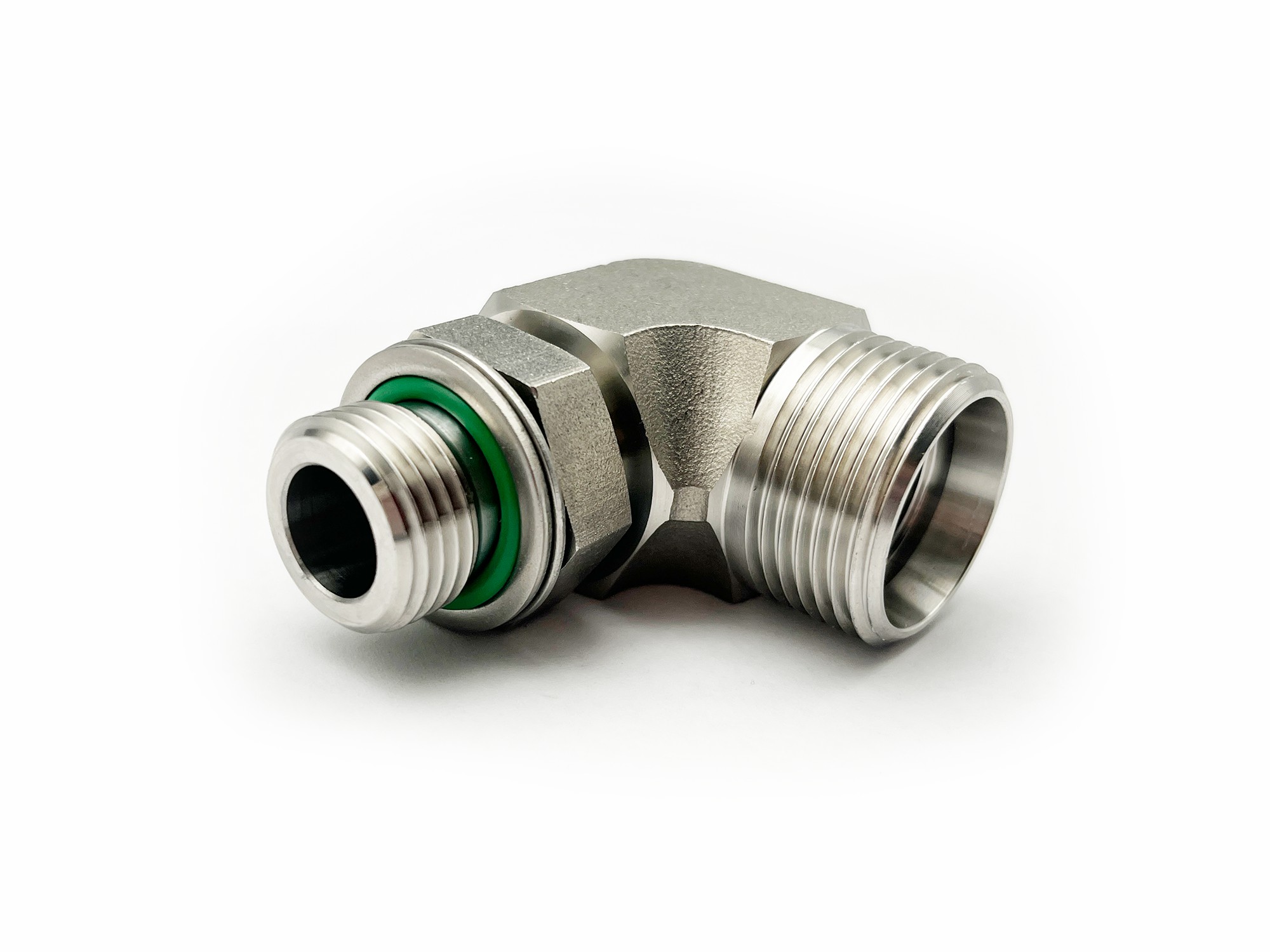

Compression type right-angle joint 1CG9/1DG9

The 1CG9 is a compression type right-angle bend through transition joint, with a metric external thread DIN compression type 24° cone sealing H-type structure. One end is connected to the steel pipe in a compression type, and the other end is a British pipe thread with G teeth and an F-type cylindrical end. It is sealed with an O-ring, which can achieve a 90° bend through connection, and has an adjustable orientation function, enabling it to flexibly adapt to the pipeline layout requirements of different scenarios. It is commonly used in situations where it is necessary to connect hydraulic components or pipelines with British standard thread interfaces, such as in some imported hydraulic equipment or systems that adopt British standard specifications.
