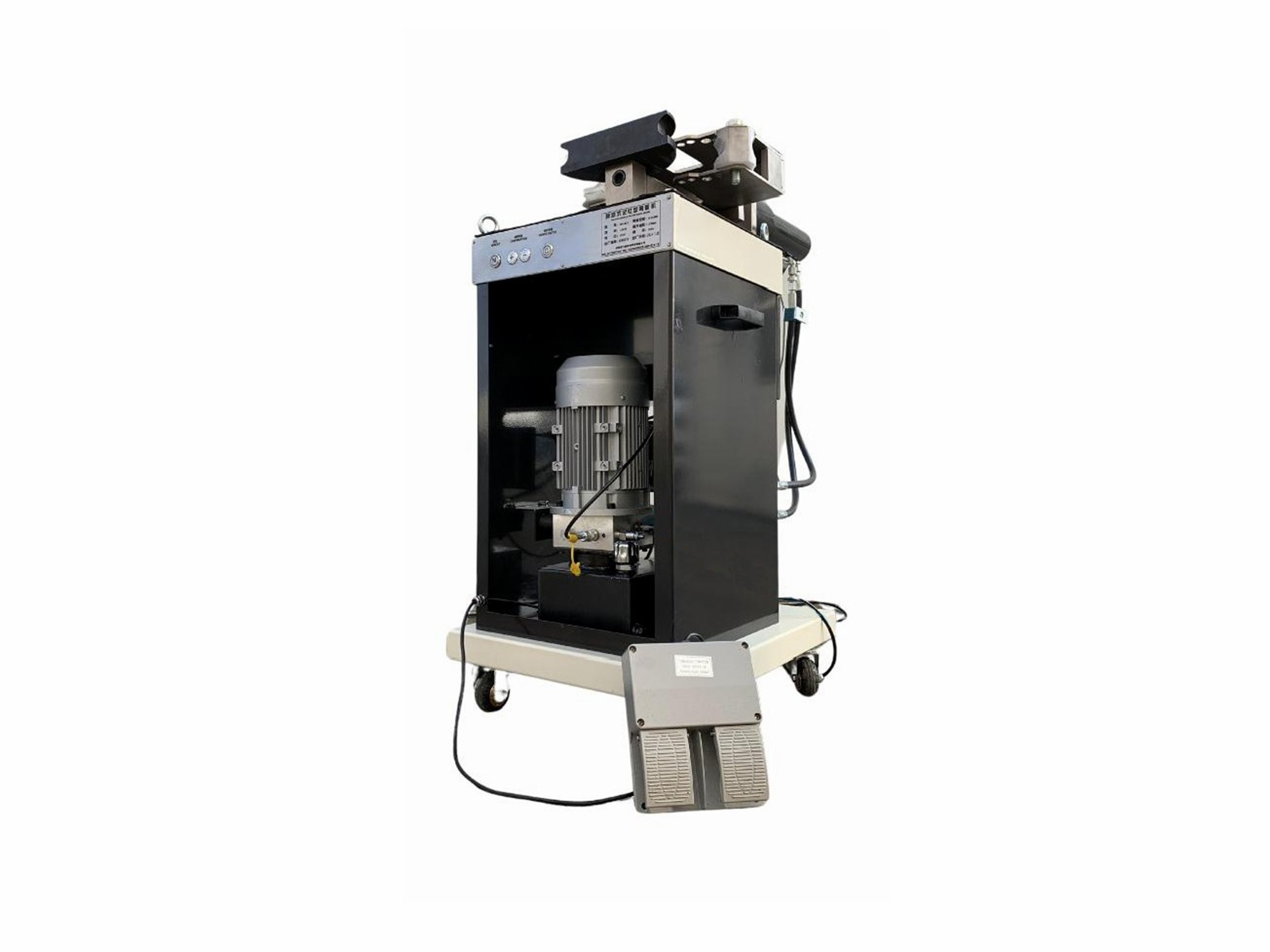

Memory Pipe Bending Machine

Store a variety of different pipe bending parameters
Strong adaptability
High production efficiency
Good flexibility
Excellent safety performance

The memory pipe bending machine is an advanced pipe processing equipment. Its core advantage lies in its powerful memory function, which can store a large number of different pipe bending parameters and programs. After the operator inputs and saves the required pipe bending parameters, when processing pipes of the same specification next time, they can directly call up the corresponding program, and the machine can accurately perform the pipe bending operation according to the preset parameters without the need for resetting, which greatly improves the production efficiency and is especially suitable for mass production.

It is very easy to operate. The user-friendly operation interface makes it easy for operators to get started, reducing the requirements for the operators' skill levels. The equipment has good safety performance, which can effectively ensure the safety of operators and the stable operation of the equipment.

In addition, the memory pipe bending machine also has good adaptability and flexibility. It can adapt to pipes of different materials and specifications, and can quickly switch the pipe bending modes and parameters according to production needs, achieving diversified pipe bending processing and meeting various complex product design requirements.

Operation Guide for Pipe Bending Machine

Pedal Mode

After installing the integrated pushing die on the machine, select the appropriate integrated clamping die and backing die according to the outer diameter of the steel pipe and the bending radius, and install the dies at the designated positions of the machine.
Click the power switch to the "ON" position. The power indicator light will turn on, and the machine will enter the startup state within two seconds.
After the equipment is powered on, the memory indicator light is off, and at this time, it is in the pedal mode (Pedal mode: When you step on the pedal, the machine starts to work, and when you lift your foot, the machine stops. The left pedal is the bending pedal, and the right pedal is the back-bending pedal. Note that when approaching the bending angle, you need to use a tapping motion to avoid exceeding the required angle.
After reaching the required angle, step on the right pedal to retract the pushing die, and then take out the bent pipe. This indicates a successful bending operation.

Memory Mode

Angle Setting

For example, when the angle to be memorized is 90°. After the device is powered on, if the memory indicator light is not on, first adjust the display screen from channel "0" to channel "1". First, step on the pedal to bend the pipe to 90°. Then, press the memory indicator light to turn it on and step on the right pedal to retract the pushing die.

Angle Compensation

Next, angle compensation needs to be carried out for this 90° angle. Place the steel pipe that has just been bent at a 90° angle properly on the pipe bender. Step on the left foot pedal. After the pushing die of the pipe bender automatically pushes to the 90° position and stops, check the condition of the steel pipe. If the steel pipe is loose, it indicates that the angle is too small, and you need to click the "+" button for compensation. If the steel pipe is too tight, it means that the angle is too large at this moment, and click the "-" button.
